QD4 Paste Backfill Diverter

The Quattro Diverter Range V3.0 have been designed as a compliant solution that offers unparalleled operational flexibility.

Rated to 15MPa with 10,000Nm of actuating torque in a diverter that offers sluice actuation with a robust steel on steel seal interface and no dead zone. Seamless integration with flushing infrastructure while offering full automation with the process of Paste Plant PLC. Custom designed to expressly address the rigours of underground paste fill, the Quattro QD range enhances all underground backfill operations.

Designed and Tested in Accordance with ASME B31.3/31.4
15MPa on Paste
10MPa on Water
10,000Nm of Actuating Torque
Remote PIG Launching
Manless Backs Mounting (QD2)
Customisable
Available with 2 and 4 outlet spools
No Dead Zone
Remote and Local Operation
Automated PIG Launcher Option
Remote Flushing Head Option

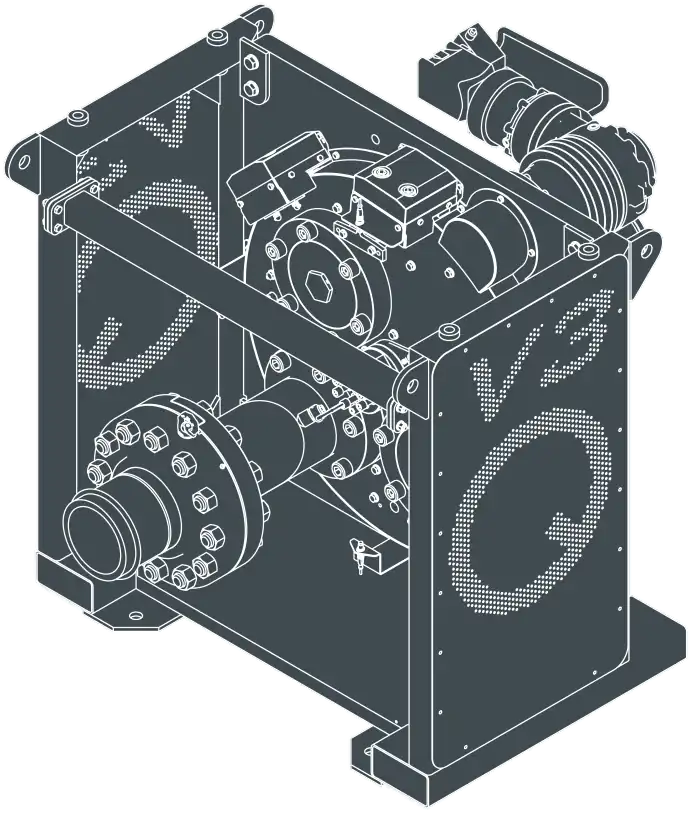

3D View

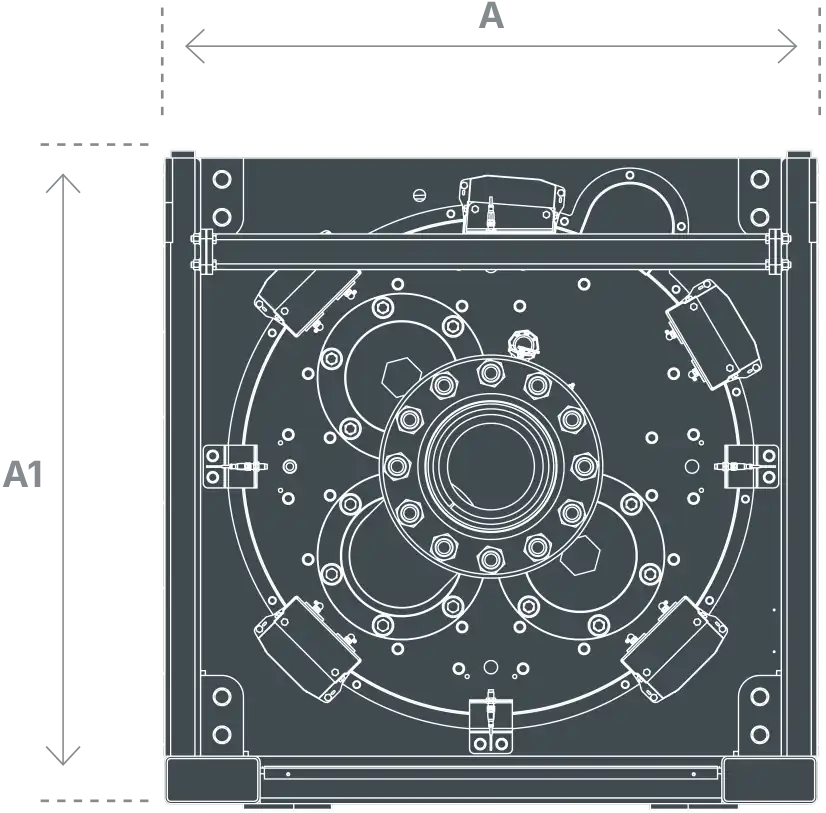

Front View

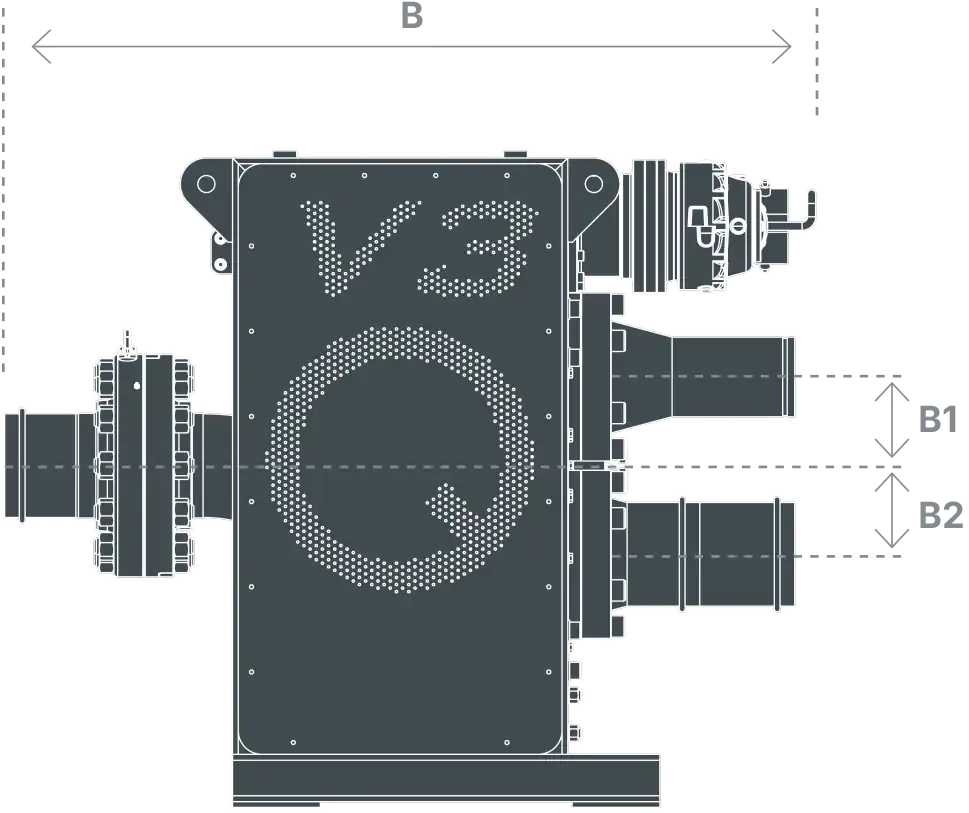

Side View

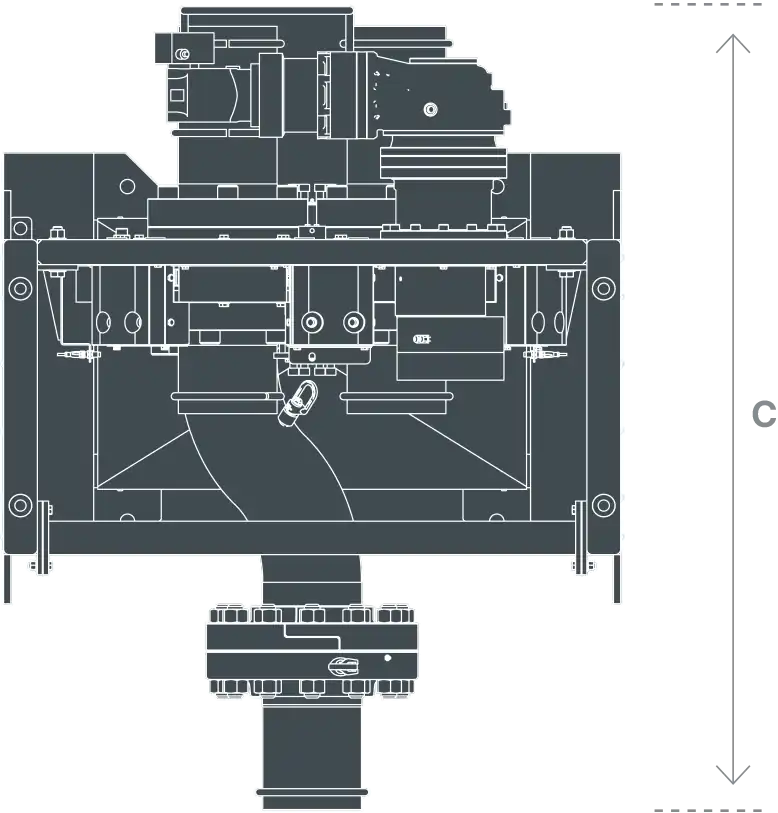

Plan

A: 1373

A1: 1372

B: 1755

B1: 187

B2: 187

C: 1800

Schedule: 80

Nominal Bore: 150mm / 200mm

Rating (MPa): 15 (10)
